NZXT C1000 80 PLUS GOLD

NZXT
Share it:



  • MORE EFFICIENT: At 50% load and high-line input voltage, power conversion efficiency reaches 2% higher than 80plus Gold Standard.
  • FULLY MODULAR: Use only the cables you need to keep your system clean and organized. Black sleeved cable and a matte black finish seamlessly fit any PC style.
SKU: PA-0G1BB

Join the waitlist to be emailed when this product becomes available

Availability:

Out of stock

14,999

Out of stock

NZXT C1000 80 PLUS GOLD

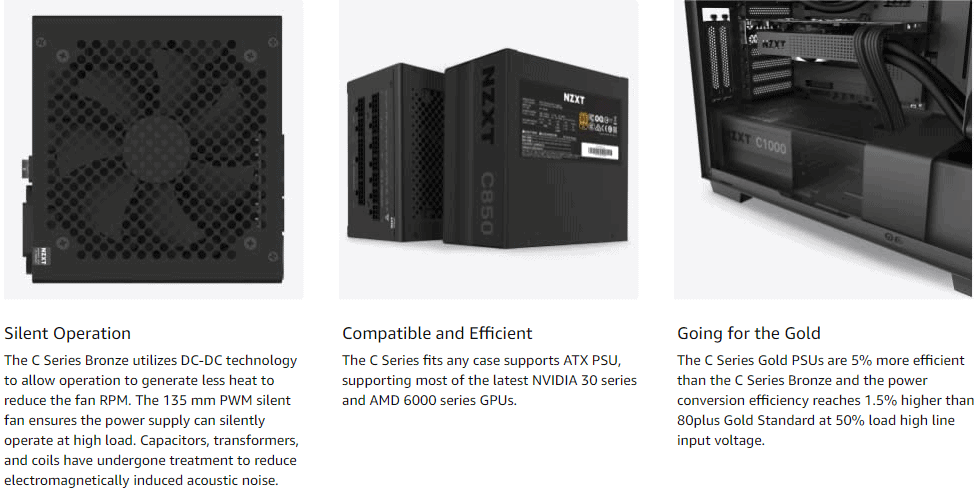

NZXT C1000 80 PLUS GOLD This PSU delivers 1000 watts of clean, stable power and is ideal for gaming and workstation PCs that have multiple GPUs and high-performance CPUs. The C1000 supports the latest GPUs, including up to an NVIDIA RTX 3090 and AMD GPUs up to the 6900 XT.

NZXT C1000 80 PLUS GOLD

*Get more deals on our store

UPC: 815671017482 SKU: PA-0G1BB Categories: , Tags: ,
Output Connectors
  • 24-pin ATX power:1
  • 4+4-pin CPU power:2
  • 6+2-pin PCIe power:6
  • SATA power:6
  • Peripherals:6
Cable Specs
  • 24-pin ATX power:600 mm, Nylon sleeving
  • 4+4-pin CPU power:700 mm, Nylon sleeving
  • 6+2-pin PCIe power:650 + 150 mm, Nylon sleeving
  • SATA power:500 + 150 mm
  • Peripherals:500 + 150 mm
AC Input Rating100 – 240Vac:13A-6.5A 50Hz-60Hz
DC Output rating
  • +3.3V and +5V:22A (120W)
  • +12V:83.5A (1002W)
  • -12V:0.3A (3.6W)
  • 5Vsb:3A (15W)
  • Total:1000W
Operation
  • PF Correction:Active @0.96
  • MTBF:100,000 hours
  • Temperature:0 – 50 °C (derating from 100% to 80% from 40 °C to 50 °C)
Energy efficiency
  • Rating:80 Plus Gold
  • 20% loading:87% @115Vac
  • 50% loading:90.5% @115Vac
  • 100% loading:87.5% @115Vac
Fan spec-
  • Dimensions:135 x 135 x 25 mm
  • Speed:0-2300 ± 10% RPM
  • Airflow:93.02 CFM (Tpy.)
  • Noise:44.5 dBA max
  • Bearing:Fluid Dynamic Bearing (FDB)
Dimensions150 x 150 x 86mm
Material(s)Steel, PCB and Plastic
Compliance StandardATX12V v2.52 / EPS12V v2.92
Regulation & CertificationcTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA
Warranty10 years
