ANT ESPORTS 690 AIR

Mid Tower

ANT ESPORTS
Share it:



  • Supports two dedicated 2.5” SSD mounts one dedicated 3.5” HDD drive
  • Supports up to dual 360mm radiators in the front and on top\
  • CPU Air Cooler clearance of up to 175mm ensures installation of massive air coolers
  • Warranty- 1 Year
SKU: 690 AIR
Availability:

In stock

6,340

In stock

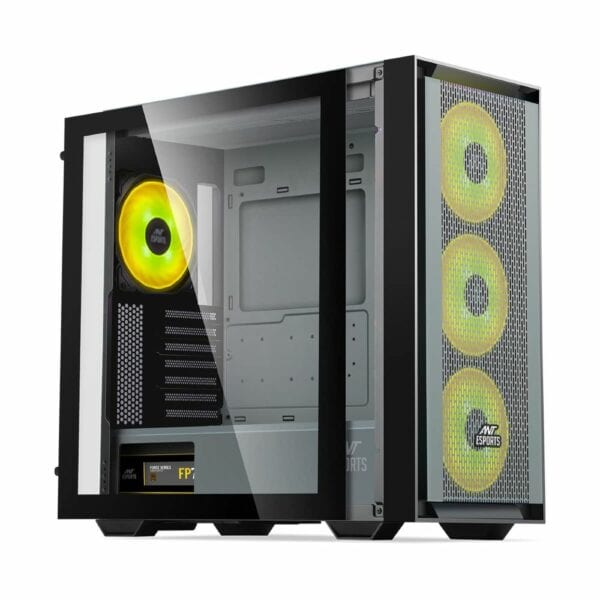

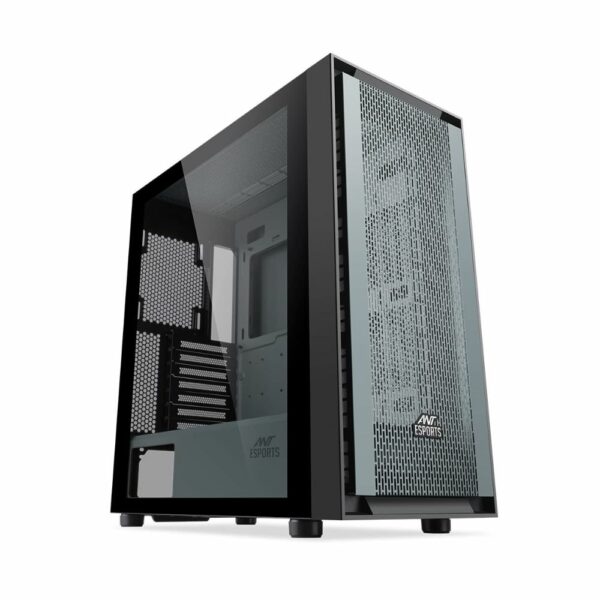

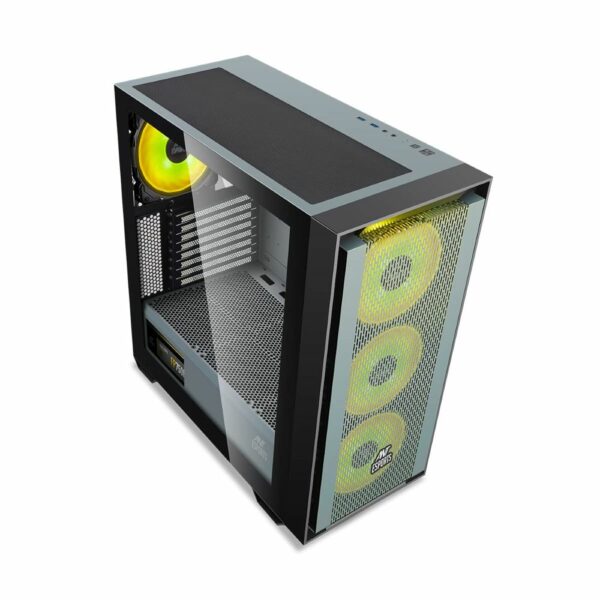

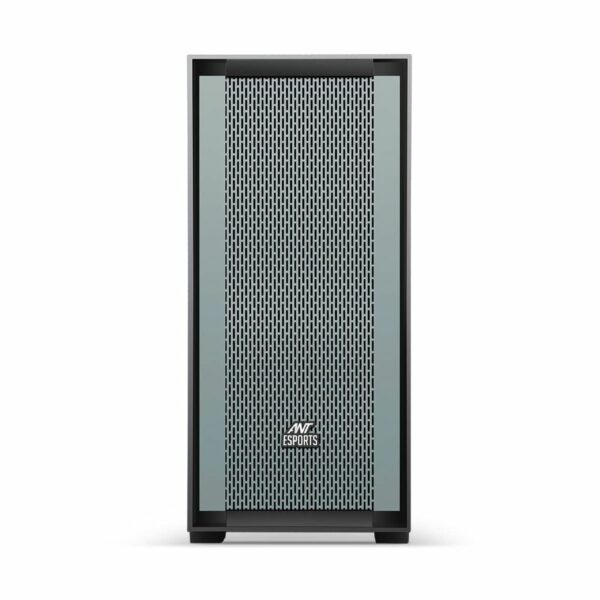

ANT ESPORTS 690 AIR

The Ant Esports 690 Air  The case supports up to E-ATX motherboards, multiple storage drives, and liquid coolers up to 360mm on top making it ideal for high-end gaming or production systems. The Ant Esports 690 Air not only keeps high-end gaming hardware cool under load but also prevents dust accumulation.

  • Multiple Radiator Mounts – For enthusiast-grade cooling dual 360 mm radiators are supported on the top and front panel while a single 240mm is supported on the side to keep the most extreme systems cool.
  • Large Storage Options – Dual 2.5” SSD mounts and dual 3.5” HDD mounts the Ant Esports 690 Air is ideal to build any gaming or production system.
  • Movable Disk Bracket – The HDD cage under the PSU shroud is movable and can be slid towards the front to make space for long PSUs and increase it to 220mm if needed..
  • Spacious Interiors – The spacious interior fits up to an E-ATX motherboard configuration. Support for up to a 390mm graphics card, a 175mm CPU cooler, and up to a 220mm PSU in length provides room for upgrades.
  • Four Dust Filters – With magnetic dust filters in the front, side and top along with a pull tray one on the PSU, the 690 Air facilitates high air flow while filtering out dust particles.

*Get more deals on pcshop store

COMPATIBLE MOTHERBOARDATX, Micro-ATX, Mini-ITX  E-ATX Motherboard
5.25″ No
3.52
2.5″2
Expansion Slots7
I/O PORTS 2x USB 3.0, 1x Audio In, 1x Mic, LED Control Button
Fan SupportFront: 120/140 mm x 3
Top: 120mm x 3/ 140mm x 2
Bottom: 120mm x 2
Rear: 120mm x 1
Side: 120mm x 2
Liquid Cooling Support(Maximum)Front: 120/240/280/360 mm
Rear: 120mm
Top: 120/240/280/360 mm
Pre-Installed FansFront: x 3 ARGB Fans
CompatibilityVGA Card Length: 390mm
CPU Cooler Height: 175mm
DIMENSIONS (L x W x H)421 x 221 x 470 mm
WARRANTY1 Year
