ANT VALUE H61MAD3
Share it:
- Supports Intel® Socket 1155 for 3rd / 2nd Generation Core ™ i7 / Core ™ i5 / Core ™ i3 / Pentium® / Celeron® Processors
- Supports 2 DDR3 1066/1333 SDRAM
- 4 SATA II 3Gb/s Ports
- 1 PCI Slot, 1 PCI Express x16 Slot
SKU: H61MAD3
Availability:
In stock
₹3,390
In stock
ANT VALUE H61MAD3
- Intel® H61 Chipset
- Intel® Socket 1155 for 3rd / 2nd Generation Core ™ i7 / Core ™ i5 / Core ™ i3 / Pentium® / Celeron® Processors
- Supports 2 DDR3 1066/1333 SDRAM
- 4 * SATA II 3Gb / s Ports
- 1 * PCI Express x16 Slot , 1 PCI Express x1 Slot
- Provides Mic In , Line In , Line Out
- 8 * USB 2.0 ports ( 6 at back panel , black , 2 at mid – board
*Get more deals on our store
| Processor Support | Intel® 1155 for 3rd / 2nd Gen CoreTM i7 / CoreTM i5 / CoreTM i3 / Pentium® / Celeron® Processors Supports Intel® 22 nm CPU Supports Intel® 32 nm CPU Supports Intel® Turbo Boost Technology 2.0 |
| Chipset | Intel® H61 Chipset |
| Supported FSB | 1066/1333 MHZ |
| Memory Support | 2x DDR3 1066/1333 SDRAM DDR3 DIMMS ( 240 pin / 1.5V ) |
| LAN | Realtek®8105E 10/100 Mbps |
| Audio | Chip integrated by Realtek® 662 Flexible 6-channel audio with jack sensing Compliant with Vista Premium |
| USB | 8 * USB 2.0 Ports ( 6 at back panel black , 2 at mid – board ) 1 * 19 – Pin USB Pinheader for 2 * USB Ports |
| SATA | 4* SATA II 3Gb/s Ports |

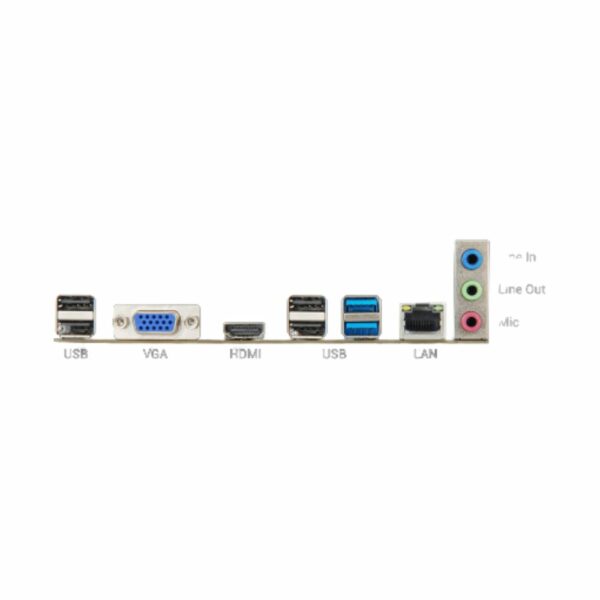

| Back Panel | 1 * VGA port 1 * HDMI port 6 * USB 2.0 Ports 1 * LAN jack 3 * Flexible Audio Jacks |
| On-Board Connectors | 1 * USB 2.0 Pinheaders | 1 * 19 – Pin USB Pinheader | 1 * F_Panel Pinheader 1 * F_Audio Pinheader | 1 * Auto PWR Pinheader | 1 * DEBUG Pinheader |
| Slots | 1 PCI Express x16 Slot 1 PCI Express x1 Slot |
| Form Factor | Micro-ATX |
| Mounting | 6 Mounting Holes |
| In the box | 1x Motherboard, 1x SATA Cable (optional), 1x IDE Drive Cable, 1x 1/O Plate, 1x User Manual, 1x Driver CD |
| Warranty | 2 Year |
