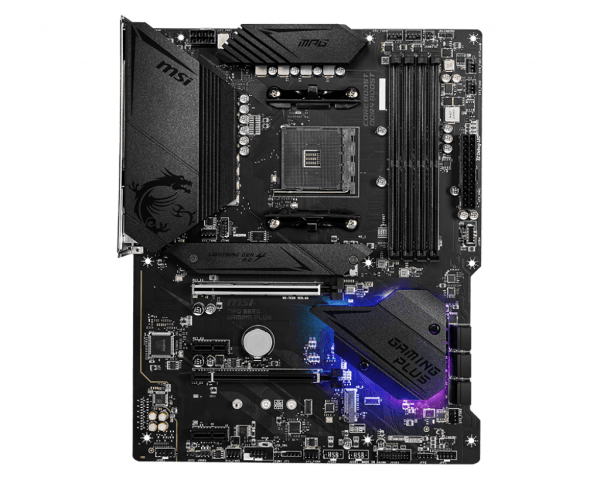

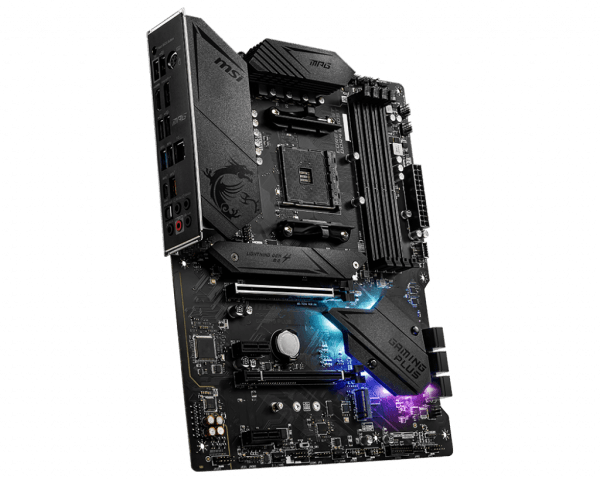

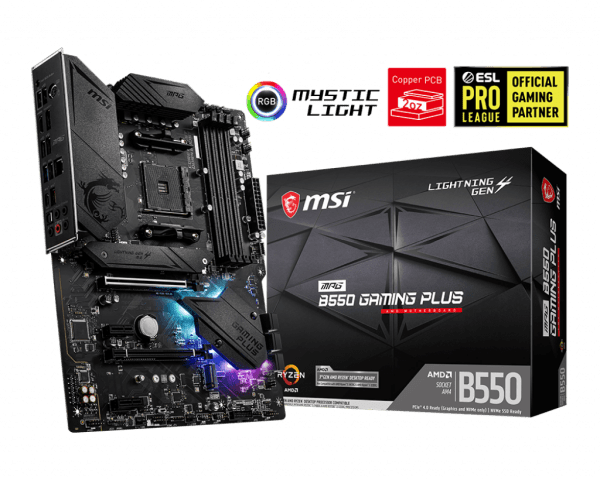

MSI MPG B550 GAMING PLUS

MSI
Share it:
  • Support for 3rd Gen AMD Ryzen™ Processors
  • Supports DDR4 Memory, up to 4400+(OC) MHz
  • M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2
  • Flash BIOS Button with Optmized ClearCMOS Function
  • MYSTIC LIGHT EXTENSION supports
SKU: MPG B550 GAMING PLUS
Availability:

Only 2 left in stock

14,300

Only 2 left in stock

MSI MPG B550 GAMING PLUS

  • Support for 3rd Gen AMD Ryzen™ Processors and future AMD Ryzen™ processors with BIOS update
  • Supports DDR4 Memory, up to 4400(OC) MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2
  • Enhanced Power Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, DDR4 Boost
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience

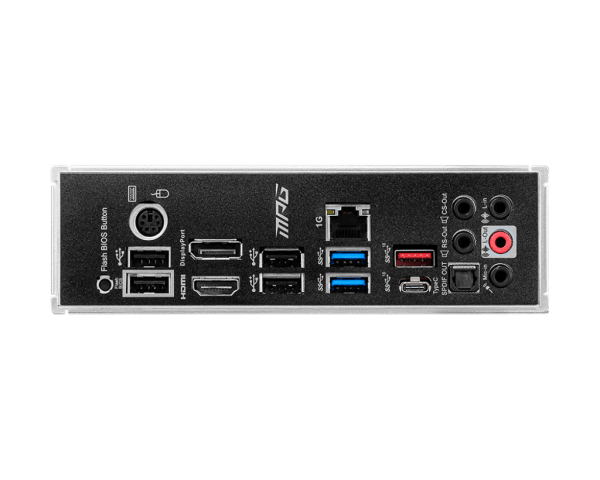

  • Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
  • Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.
  • Audio Boost: Reward your ears with studio grade sound quality

LIGHTNING GEN 4 M.2

Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.

A HUGE STEP OF DDR PERFORMANCE

MSI OC LAB does not merely work hard on extreme overclocking. Compared to B450 motherboard memory A-XMP profile, MSI does have great improvement on performance and efficiency for B550 motherboards. Easy to enable A-XMP profile with auto power settings to get the best memory speed and stability.

M.2 SHIELD FROZR

World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

MYSTIC LIGHT

TRUE COLOR MYSTIC LIGHT ON MOTHERBOARD

Splash on some color and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colors and 29 LED effects.

Mystic Light Extension

Still not satisfied with the decoration on the ecosystem? The Mystic Light Extension will help you to have more attractive way to decorate you gaming rig by the LED Strips and still under controlled by the Mystic Light application.

AUDIO

AUDIO BOOST

  • DEDICATED HIGH DEFINITION AUDIO PROCESSOR
  • HIGH QUALITY AUDIO CAPACITORS
  • HIGH QUALITY AUDIO JACKS WITH S/PDIF

ISOLATED AUDIO SIGNAL

  • ISOLATED AUDIO DESIGN
  • SEPARATED AUDIO LAYERS FOR CLEAN LEFT & RIGHT CHANNELS

USB

BOOST YOUR GAME EXPERIENCE WITH USB 3.2 GEN 2

Read and write your files over USB faster than ever. MSI MPG series motherboards offer a wide variety of options to connect and boost your USB devices, delivering 10Gbps transferring speed by both USB 3.2 Gen 2 Type-A and Type-C.

USB FRONT TYPE-C

MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.





*Check MSI official website for more details here
*Check more deals on our store

SKU: MPG B550 GAMING PLUS Categories: , , Tags: , , ,
CPU/SOCKETRyzen 9/AM4
CHIPSETAMD B550 CHIPSET
DDR4 MEMORYSupports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4466/ 4533/ 4600/ 4866/ 5000/ 5100 MHz by A-XMP OC MODE
MEMORY CHANNELDual
DIMM SLOTS4
MAX MEMORY (GB)128
PCI-E X162
PCI-E X12
SATAIII6
M.2 SLOT2
RAID0/1/10
TPM(HEADER)1
LAN1x Realtek® 8111H Gigabit LAN controller
USB 3.2 PORTS (FRONT)1(Gen 1, Type C), 2(Gen 1, Type A)
USB 3.2 PORTS (REAR)1(Gen 2, Type C), 1(Gen 2, Type A), 4(Gen 1, Type A)
USB 2.0 PORTS (FRONT)4
USB 2.0 PORTS (REAR)4
AUDIO PORTS (REAR)Realtek® ALC892 Codec
DISPLAY PORT1
HDMI1
DIRECTX12
FORM FACTORATX
CROSSFIREYes
WARRANTY3 Year
