MSI PRO Z690-P DDR4

MSI
Share it:



  • Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR4 Memory, up to 5200+(OC) MHz
  • Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2×2
  • Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
  • Audio Boost: Reward your ears with studio grade sound quality
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
  • Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfire™
SKU: PRO Z690-P DDR4

Join the waitlist to be emailed when this product becomes available

Availability:

Out of stock

17,650 17,999

Out of stock

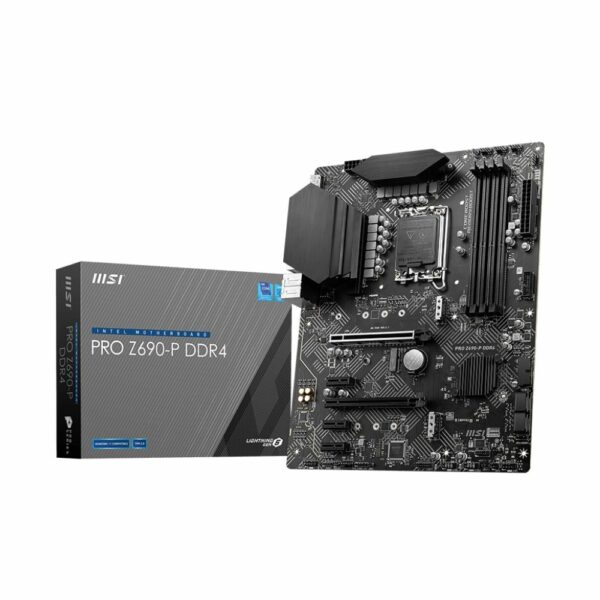

MSI PRO Z690-P DDR4

The MSI PRO Z690- P DDR4 MSI OC LAB does not merely work hard on extreme overclocking. The XMP memory profile has great improvement on performance and efficiency for Z690 . Easy to enable XMP profile with auto power settings to get the best memory speed and stability.

With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink with 7W/mK thermal pad ensures even high-end processors to run in full speed with MSI motherboards.



*Get more deals on pcshop store on motherboard

CPU(max support)I9
SOCKET 1700
CHIPSET
Intel® Z690 Chipset
DDR4 MEMORY
5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
MEMORY CHANNELDual
DIMM SLOTS4
MAX MEMORY 128 GB
PCI-E X163
PCI-E X11
SATAIII6
M.2 SLOT4
RAID0/1/5/10
TPM/HEADER1
LAN
1x Intel® I225-V 2.5Gbps LAN

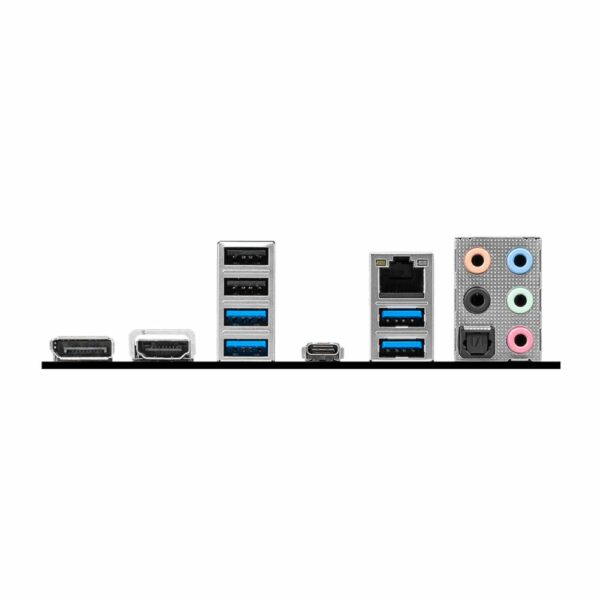

USB 3.2 PORTS
  • REAR -1(Gen 2, Type C), 4(Gen 1, Type A)
  • FRONT- 1(Gen 2×2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A)
USB 2.0 PORTS
  • REAR – 4 PORTS
  • FRONT – 4 PORTS
AUDIO PORTS
Realtek® ALC897 Codec
DISPLAY PORTS1
HDMI1
DIRECTX12
FORM FACTORATX
CROSSFIRE Y
OPERATING SYSTEMSupport for Windows® 11 64-bit, Windows® 10 64-bit
WARRANTY3 Year
