NOCTUA NF-F12 PWM

NOCTUA
Share it:



  • Premium quiet fan, 120x120x25 mm, 12V, 4-pin PWM, max. 1500 RPM, max. 22.4 dB(A), >150,000 h MTTF
  • Award-winning 120x25mm fan with Focused Flow frame for high static pressure and superior quiet cooling performance
  • Ideal for CPU heatsinks (e.g. Noctua NH-U12(S) series) and water cooling radiators, perfect replacement fan for loud all-in-one (AIO) coolers
  • 4-pin PWM version for automatic speed control via 4-pin PWM fan headers, broad 300-1500rpm speed range (1200rpm max. with supplied Low-Noise Adaptor)
SKU: NF-F12 PWM

Join the waitlist to be emailed when this product becomes available

Availability:

Out of stock

1,850

Out of stock

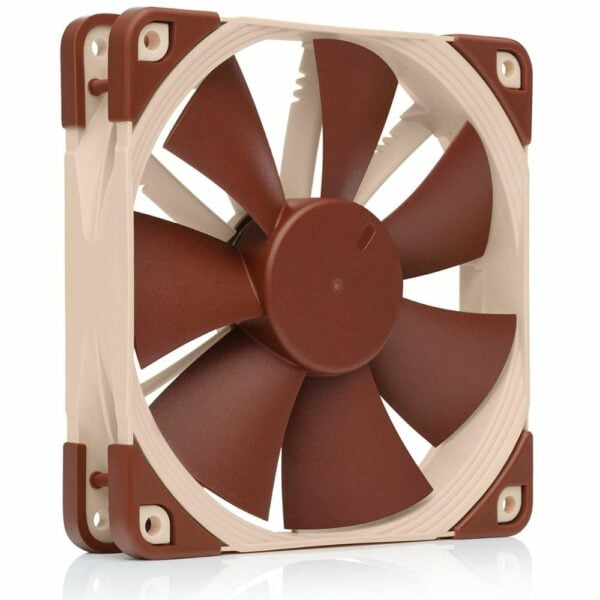

NOCTUA NF-F12 PWM

Teaming up eleven stator guide vanes with a specially conceived seven blade impeller, the NF-F12’s Focused Flow™ system creates outstanding static pressure and focuses the airflow for superior performance on heatsinks and radiators. At the same time, a wide range of advanced aerodynamic design measures, second generation SSO-Bearing and Noctua’s new, custom designed PWM IC for fully automatic control guarantee astounding quietness of operation. The NF-F12 comes with modular cabling, integrated anti-vibration pads and two speed settings for full flexibility. Its commanding performance, exhaustive set of features and Noctua’s trusted premium quality make it an elite choice for use on air coolers, radiators and other pressure demanding applications.

*check NOCTUA official website here
*check more deals on our store

SKU: NF-F12 PWM Categories: , Tags: ,
Size120x120x25 mm
Mounting hole spacing105×105 mm
Connector & pin-configuration4-pin PWM
Cable length20cm + 30cm NA-EC1 extension cable
Bearing SSO2
Blade geometryHeptaperf™
Frame technology Focused Flow™
Material Sterrox® LCP
Rotational speed (+/- 10%)1500 RPM
Rotational speed with L.N.A. (+/- 10%)1200 RPM
Min. rotational speed (PWM, +/-20%)300 RPM
Airflow93,4 m³/h
Airflow with L.N.A.74,3 m³/h
Acoustical noise22,4 dB(A)
Acoustical noise with L.N.A.18,6 dB(A)
Static pressure2,61 mm H₂O
Static pressure with L.N.A.1,83 mm H₂O
Max. input power0,6 W
Max. input current0,05 A
Operating voltage12 V
MTTF> 150.000 h
Scope of deliveryLow-Noise Adaptor (L.N.A.)

4-pin y-cable

30cm extension cable

Fan screws

Warranty6 Years
