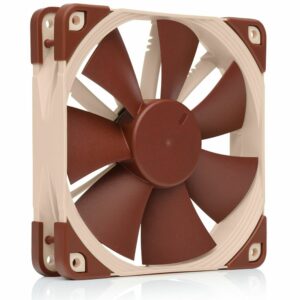

NOCTUA NF-A12x15 PWM

NOCTUA
Share it:



  • Premium quiet slim fan, 120x120x15 mm, 12V, 3-pin Molex, 1850/1400/950 RPM, max. 23.9 dB(A), >150,000 h MTTF
  • Award-winning A-series design with Flow Acceleration Channels and Advanced Acoustic Optimisation frame for superior quiet cooling performance
  • 120x15mm slim design ideal for low-profile CPU coolers, HTPCs, ITX builds, space-restricted applications etc.
  • 3-pin FLX version provides 1850/1400/950rpm speed settings via Low-Noise Adaptors to fine-tune the fan for maximum airflow or near-silent operation
  • Includes anti-vibration mounts, fan screws, extension cable and 3:4-pin adaptor for powering the fan directly from the power supply
SKU: NF-A12x15 PWM

Join the waitlist to be emailed when this product becomes available

Availability:

Out of stock

1,850

Out of stock

NOCTUA NF-A12x15 PWM FAN

Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and Noctua’s AAO frame, the NF-A12x15 is a highly optimised, premium quality quiet fan in size 120x15mm. Its 15mm slim design makes the NF-A12x15 ideal for space-restricted applications such as low-profile CPU coolers or HTPC cases. The PWM version sports Noctua’s custom-designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise Adaptor to reduce the maximum speed during PWM control from 1850 to 1400rpm. Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.

*check NOCTUA official website here
*check more deals on our store

SKU: NF-A12x15 PWM Categories: , Tags: ,
Size120x120x15 mm
Mounting hole spacing105×105 mm
Connector & pin-configuration4-pin PWM
Cable length20cm + 30cm NA-EC1 extension cable
Bearing SSO2
Blade geometryA-Series with Flow Acceleration Channels
Frame technology AAO (Advanced Acoustic Optimisation)
Material Sterrox® LCP
Rotational speed (+/- 10%)1850 RPM
Rotational speed with L.N.A. (+/- 10%)1400 RPM
Min. rotational speed (PWM, +/-20%)450 RPM
Airflow 94,2 m³/h
Airflow with L.N.A.70,8 m³/h
Acoustical noise 23,9 dB(A)
Acoustical noise with L.N.A.16,8 dB(A)
Static pressure1,53 mm H₂O
Static pressure with L.N.A.1,65 mm H₂O
Max. input power1,56 W
Max. input current0,13 A
Operating voltage12 V
Voltage PWM signal5 V
MTTF> 150.000 h
Scope of deliveryLow-Noise Adaptor (L.N.A.)

4-pin y-cable

30cm extension cable

NA-AV3 anti-vibration mounts

Fan screws

Warranty6 Years
